Aluminum CNC Machine Skived Fin Heat Sink Friction Welding Cooling Plate

Brand Name:	UCHI
MOQ:	1000PCS
Price:	Negotiable
Payment Terms:	T/T,Paypal,Western Union,Money gram
Supply Ability:	5000,000,000PCS Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan，Guangdong,China

Certification:

UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL

Conducting Power:

2000 W

Fan Life:

50000 Hrs

Compatibility:

Suitable For CPUs, GPUs, Power Electronics

Weight:

Varies By Size, Typically 200-500 Grams

Surface Treatment:

Anodized

Keyword:

CNC Macining Parts

Bonding Technique:

Vacuum Brazing

Coolant Type:

Coolant Type

Service:

OEM Custom Service

Usage:

Electronics

Application:

Electronics Cooling, Industrial Machinery, Automotive

Body Material:

Aluminum

Applicable Medium:

WATER

Single Package Size:

40X30X25 Cm

Coolingmethod:

Liquid Cooling With Water Or Coolant

Packaging Details:

Bulk

Highlight:

Aluminum Skived Fin Heat Sink

Friction Welding Skiving Heat Sink

CNC Aluminum Skived Heatsink Plate

Product Description

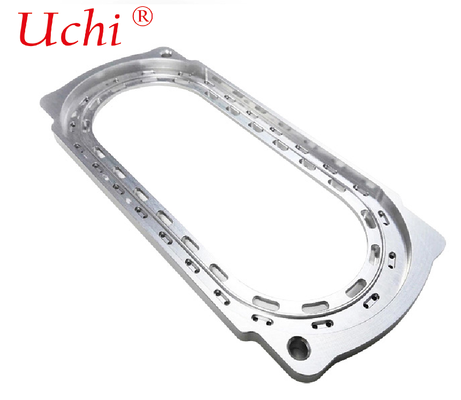

Aluminum CNC Machine Skived Fin Heat Sink Friction Welding Cooling Plate

Complete Introduction to Aluminum CNC-Machined Heat Sinks

Process Features

Made of 6061-T6 / 6063-T5 aluminum alloy bars or plates, integrally formed via CNC milling and drilling without assembly or extruded profiles, delivering ultra-high precision.

Flat base with uniform thickness, compatible with high-density heat sources such as IGBTs, MOSFETs, CPUs and power modules
Fins can be designed as thin fins, dense teeth, inclined teeth or pin-shaped fins for larger heat dissipation area
Heat pipe pre-embedded grooves, liquid cooling channels, mounting holes and positioning posts can be processed in one step

Application Scenarios

High-power power supplies, photovoltaic inverters, energy storage PCS, industrial controllers, medical equipment, AI computing modules, automotive-grade heat dissipation

Advantages

High precision and excellent flatness, resulting in low contact thermal resistance
Flexible structure; irregular-shaped, ultra-thin and thickened bases are all available
High strength and good vibration resistance, suitable for harsh working conditions
Can be combined with heat pipes, liquid cooling and vapor chambers for composite heat dissipation

Product Specifications

Material	AL 6061
Size	15013035mm
Technology	Friction welding stir + CNC machined
Feature	Good cooling capability and no leakage default
Surface Treatment	Oil cleared, cleaned and passivation
Heat Conducting Power	150W

Product Advantages

We specialize in friction welding stir technology, offering customers the best possible price while maintaining high quality and fast production times. We have recently collaborated with Intel Corporation for aluminum CNC machine heat sinks with skiving fin technology, and we continue to advance our FSW products with higher precision technology.

Product Images
