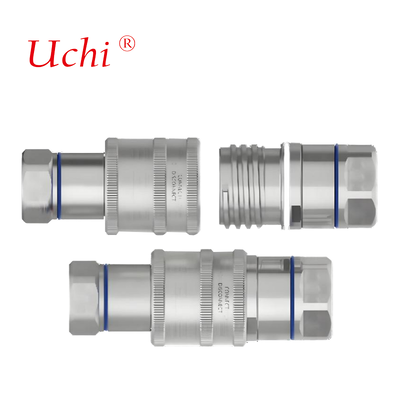

CNC Machined Quick Connect Water Cooling Fittings for Tube Type Cold Plate Parts

Brand Name:	Uchi
Model Number:	Quick-Connect Fittings
MOQ:	100pcs
Price:	Negotiable
Payment Terms:	T/T，paypal， Western Union,MoneyGram
Supply Ability:	50000000pcs per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan，Guangdong,China

Certification:

SMC

Material:

Aluminum, Stainless Steel, Brass, Carbon Steel, Titanium...

Precision:

±0.002 ~ ±0.005mm

Certification:

ISO 9001,ROSH,CE,ISO16949

Machining Type:

CNC Turning, CNC Milling,CNC Drilling ,etc.

Surface:

Anodized, Polished

Type:

Broaching, Drilling, Etching / Chemical Machining, Laser...

Highlight:

Quick Connect Water Cooling Fittings

CNC Machined Tube Type Cold Plate

ISO 9001 Precision Machined Parts

Product Description

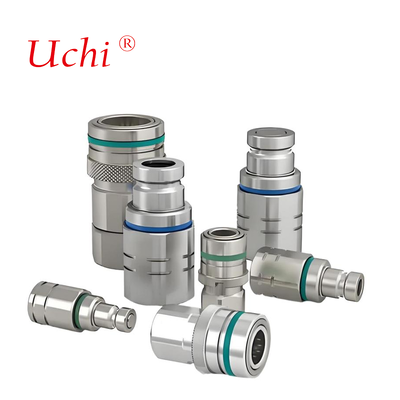

CNC Machined Quick-Connect Fitting Parts For Tube-Type Cold Plates

Precision CNC machined quick-connect fitting parts designed specifically for tube-type cold plates in liquid cooling systems.

Manufacturing Specifications

Processing	CNC Turning, CNC Milling
Materials	Aluminum: 2000 series, 6000 series, 7075, 5052, etc. Stainless steel: SUS303, SUS304, SS316, SS316L, 17-4PH, etc. Titanium: Grade F1-F5 Brass: 260, C360, H59, H60, H62, H63, H65, H68, H70, etc. Steel: 1214L/1215/1045/4140/SCM440/40CrMo, etc.
Surface Treatment	Anodized, Bead Blasted, Silk Screen, PVD Plating, Zinc/Nickel/Chrome/Titanium Plating, Brushing, Painting, Powder Coated, Passivation, Electrophoresis, Electro Polishing, Knurl, Laser/Etch/Engrave etc.
Tolerance	±0.002 ~ ±0.005mm
Surface Roughness	Min Ra 0.1~3.2

Material Selection Guide for Liquid Cooling Systems

Application Scenario	Recommended Main Body Material	Recommended Seal Material	Core Advantages	Selection Notes
Data center server liquid-cooled plates	Brass / 6061 Aluminum Alloy	Nitrile Butadiene Rubber (NBR)	Moderate cost, excellent machinability, compatible with water-glycol coolant; easy assembly and disassembly	System working pressure ≤ 3.0 MPa; avoid long-term high-temperature (＞100℃) conditions
New energy vehicle power battery liquid cooling circuit	304/316 Stainless Steel	Fluororubber (FKM/Viton)	High pressure resistance (3.0-6.0 MPa), vibration and impact resistance; wide temperature tolerance	Comply with ISO 16028 automotive industry standards
Outdoor charging pile liquid cooling system	316 Stainless Steel / Glass Fiber Reinforced PA66	Fluororubber (FKM/Viton)	316 stainless steel resists outdoor humid corrosion; engineering plastic features light weight and good insulation	Meet IP67 or higher protection level
High-temperature liquid cooling for industrial equipment	316 Stainless Steel	Perfluoroelastomer (FFKM)	Ultra-high temperature resistance (≤200℃), compatible with strong corrosive coolants	High cost, suitable for high-end industrial scenarios
Portable liquid cooling for consumer electronics	Polyoxymethylene (POM) / Aluminum Alloy	Silicone Rubber (VMQ)	Light weight, excellent insulation; resistance to extreme low temperature	Only for low-pressure (≤1.0 MPa), normal/low-temperature conditions

Material Selection Principles

Material compatibility first: For water-glycol coolant, prioritize brass/aluminum alloy + NBR/FKM; for oil-based coolants, use FKM/FFKM seals
Working condition parameter matching: Rated pressure resistance should be ≥ 1.5 times system peak pressure; temperature resistance should cover system extremes
Balance between cost and performance: Choose brass/NBR for general scenarios; upgrade to stainless steel/FKM for high-demand applications

Manufacturing Capabilities

Our mold workshop features advanced equipment including:

22 sets of electric discharge machines (EDM), including 2 MAKINO mirror EDM machines
9 wire-cut EDM machines (low-speed), including 3 Seibu and 1 Sodick machines from Japan
7 spark erosion machines, 10 grinding machines, 2 milling machines and 1 lathe

Equipment Specifications

Table size: 500×350 mm
Rapid traverse speed: 5000 mm/min
Maximum workpiece weight: 500 kg
Maximum electrode weight: 50 kg

High Precision Machining

Utilizing SuperSpark4 and IES (Intelligent Expert System) technologies for advanced adaptive power supply and jump control to stabilize the EDM process and improve machining precision. Equipped with ultra-surface and ultra-edge generator technologies for excellent surface finish and metallurgical quality.

Liquid Cooling System Technology

High-power liquid cooling systems require heat sinks capable of rapid heat absorption. Leveraging the high specific heat capacity of liquids, our systems transfer large amounts of heat through liquid flow, capable of dissipating heat ranging from several hundred watts to over one kilowatt.

Liquid Cold Plate Varieties

Buried-tube Liquid Cold Plate: Fabricated by grooving plates, burying and welding copper tubes inside, then hermetically sealing via welding
Inserted-tube Liquid Cold Plate: Manufactured by embedding copper tubes onto aluminum plate surfaces using welding or bonding processes
Channel-type Liquid Cold Plate: Internal flow channels formed on copper or aluminum substrates through drilling, extrusion, and precision machining
Liquid Cooling Block: For high-power chip heat dissipation with internal flow channels created through skiving fin technology

Product Applications

Quality Assurance

We maintain rigorous quality standards with comprehensive testing equipment including:

1 Coordinate Measuring Machine
1 projector instrument
2 water high pressure testing machines
4 thermal resistance testing machines
2 liquid leakage testing machines

Customer Service Commitment

Prompt response to all inquiries
Competitive pricing with guaranteed quality
Efficient production scheduling
Optimal transportation solutions
Comprehensive technical support

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.

Have you exported goods before and to which regions?

60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.

How many employees do you have?

Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.

Can you provide samples if we agree with the design?

Yes, we provide samples for confirmation before mass production, along with technical drawings if required.

What packing methods do you use?

Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.

Do you provide technical support for product issues?

All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
