Liquid Cooling Distribution Plate Manifold Water Cooling Fittings Header Pipe Design

Name: Liquid Cooling Distribution Plate Manifold Water Cooling Fittings Header Pipe Design
Brand: Dongguan Uchi Electronics Co.,Ltd
SKU: Manifold
Availability: InStock

Brand Name:	Uchi
Model Number:	Manifold
MOQ:	100pcs
Price:	Negotiable
Payment Terms:	T/T，paypal， Western Union,MoneyGram
Supply Ability:	50000000pcs per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan，Guangdong,China

Certification:

SMC

Highlight:

Liquid Cooling Distribution Plate Design

Manifold Water Cooling Fittings Header

Liquid Cooled Plate Pipe Assembly

Product Description

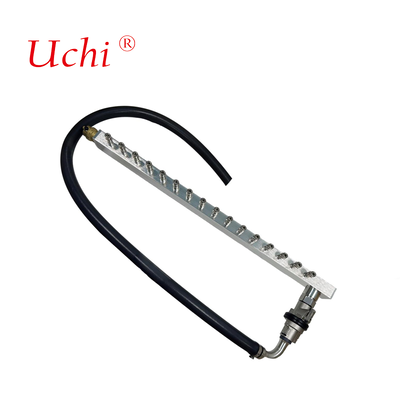

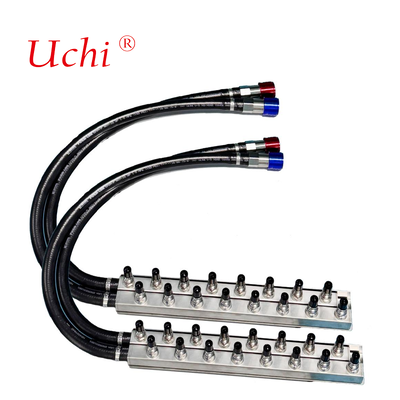

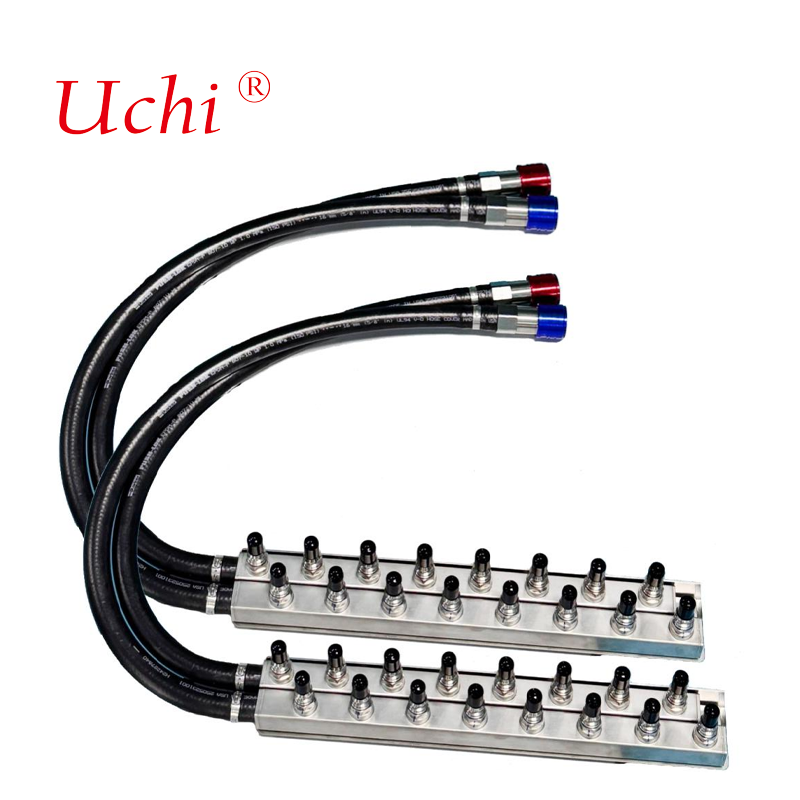

Manifold Water-Cooling System Components

Our comprehensive liquid cooling solutions include manifold systems, water-cooling fittings, header pipes, and liquid-cooled plates designed for optimal thermal management in demanding applications.

Product Overview

The manifold serves as the central hub for fluid distribution and collection in liquid cooling systems. Through pressure-stabilized distribution and centralized collection, it ensures uniform cooling fluid distribution among multiple branch cooling units, maintaining consistent heat dissipation performance throughout the system.

Key Features

Welded branch ports for excellent sealing performance
High hydraulic pressure resistance and corrosion resistance
Reliable and safe operation
Simple, aesthetically pleasing bracket design
Easy installation with space-saving mounting

Sealing Structure Technology

Sealing Method	Structural Schematic	Leak-proof Principle	Advantages
O-Ring Sealing	An elastic O-ring is embedded at the interface and fastened with bolts	The compressed O-ring fills the gap and blocks the leakage of coolant	Easy to assemble and disassemble, suitable for systems requiring maintenance
O-Ring Sealing	The shunt port is directly welded to the water-cooled plate pipeline	Eliminates interface gaps and forms a closed flow channel	Strong sealing performance

Technical Specifications

Length Range	50 cm ~ 250 cm
Common Materials	Aluminum / Copper / Stainless Steel

Application Scope

Floor heating, data center heat dissipation, tap water supply systems, air conditioning heat dissipation, industrial water systems

Key Application Scenarios

New Energy Vehicle Battery Packs: Adapted to series-parallel battery module layouts, connecting to cold plates to maintain temperature differences within ±2℃ and prevent thermal runaway
Data Center Server Cooling: Hierarchical distribution design for CPU/GPU cold plates in high-density cabinet configurations
Industrial Frequency Converter Heat Dissipation: Compact integrated design for precise local heat dissipation of power modules

Manufacturing Capabilities

Advanced Equipment Infrastructure

Our mold workshop features comprehensive manufacturing capabilities including 22 EDM machines (including 2 MAKINO mirror EDM), 9 wire-cut EDM machines (3 Seibu, 1 Sodick from Japan), 7 spark erosion machines, 10 grinding machines, 2 milling machines, and 1 lathe.

Technical Specifications

Table Size	500×350 mm
Rapid Traverse Speed	5000 mm/min
Maximum Workpiece Weight	500 kg
Maximum Electrode Weight	50 kg

High Precision Machining

Utilizing SuperSpark4 and IES (Intelligent Expert System) technologies for advanced adaptive power supply and jump control, ensuring stable EDM processes and improved machining precision. Equipped with ultra-surface and ultra-edge generator technologies for exceptional surface finish and metallurgical quality.

Liquid Cooling System Technology

High-power liquid cooling systems require heat sinks capable of rapid heat absorption. Leveraging the high specific heat capacity of liquids, our systems transfer substantial heat through liquid flow, capable of dissipating heat ranging from several hundred watts to over one kilowatt.

Liquid Cold Plate Varieties

Buried-tube Liquid Cold Plate: Fabricated by grooving plates, burying and welding copper tubes, then hermetically sealing via welding for reliable liquid tightness and excellent thermal contact
Inserted-tube Liquid Cold Plate: Manufactured by embedding copper tubes onto aluminum plate surfaces using welding or bonding processes with strict flatness control
Channel-type Liquid Cold Plate: Internal flow channels formed on copper or aluminum substrates through drilling, extrusion, and precision machining, sealed via friction welding or high-temperature brazing
Liquid Cooling Block: For high-power chip heat dissipation with internal flow channels created through skiving fin technology to maximize heat exchange surface area

Quality Assurance

We maintain rigorous quality standards with comprehensive testing equipment including:

1 Coordinate Measuring Machine
1 projector instrument
2 water high pressure testing machines
4 thermal resistance testing machines
2 liquid leakage testing machines

Customer Service Commitment

Prompt response to all inquiries
Competitive pricing with guaranteed quality
Efficient production scheduling
Optimal transportation solutions
Comprehensive technical support

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.

Have you exported goods before and to which regions?

60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.

How many employees do you have?

Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.

Can you provide samples if we agree with the design?

Yes, we provide samples for confirmation before mass production, along with technical drawings if required.

What packing methods do you use?

Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.

Do you provide technical support for product issues?

All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
