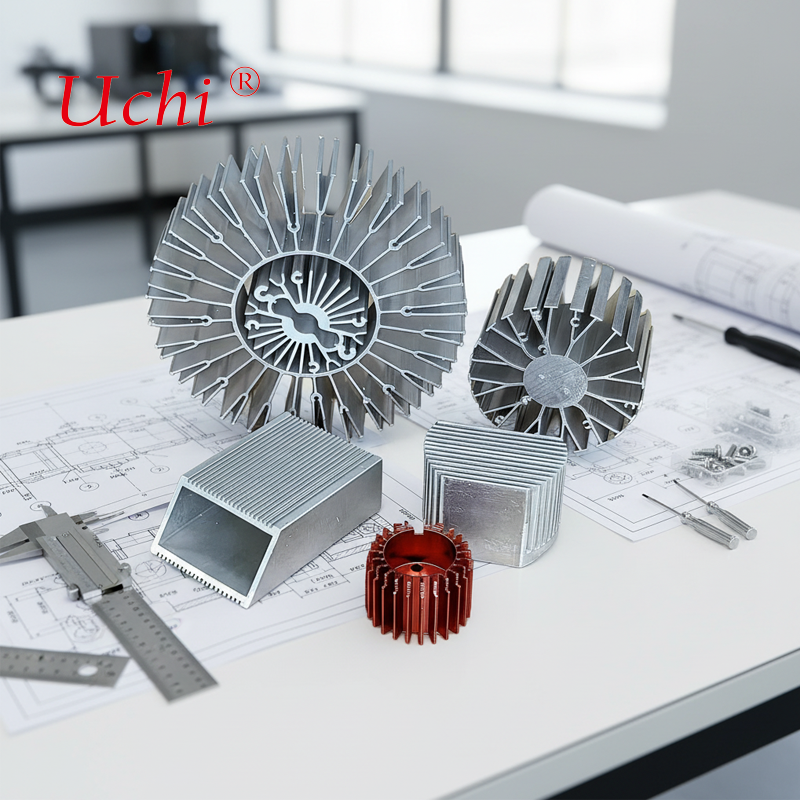

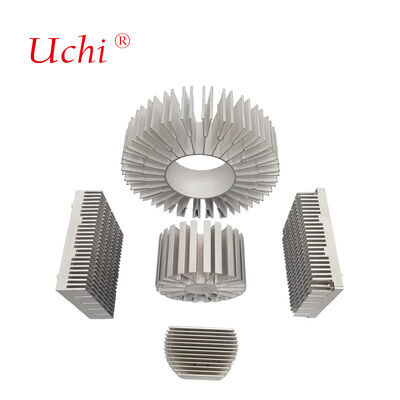

30W Anodized Tubular Heat Sink Skived Thermal Dissipation Solution

Brand Name:	Uchi
Model Number:	Cold Forged Heat Sink 07
MOQ:	100pcs
Price:	Negotiable
Payment Terms:	T/T，paypal， Western Union,MoneyGram
Supply Ability:	50000000pcs per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan，Guangdong,China

Certification:

SMC

Body Material:

Aluminum

Temper:

T3~T8

Surface Treatment:

Anodized

Tolerance:

±1%

Material:

Alloy 6063/6061/6005/6060 /6082/7003/3003T5/T6

IP Rating:

IP65

Process:

Cold Forging

Alloy Or Not:

Is Alloy

Certification:

ISO9001:2008

Thickness:

0.30mm--Customized

Highlight:

30W tubular heat sink

anodized skived heat sink

liquid cooling plate heat sink

Product Description

30W Anodized Tubular Heat Sink Skived Thermal Dissipation Solution

Product Overview

High-performance tubular heat sink manufactured using advanced cold forging technology for superior thermal management solutions.

Product Advantages

Manufactured from T1/T2 pure copper using cold forging process, featuring thermal conductivity up to 390W/m·K.

Optimal balance among thermal performance, reliability, cost, weight and dimensions
40% reduction in thermal resistance compared to traditional processes
No black scale remains at the root of pillars after CNC machining

Technical Specifications

Surface Treatment	Anodize Finish
Material	Alloy 6063/6061/6005/6060 T1-T6
Deep Process	Punching, Drilling, Precision Cutting
Standard	GBT14846-2008 GB5237-2008
Certification	ISO9001-2008
Feature	European Standard
OEM Service	OEM ODM Accepted
Tolerance	±0.1~0.005mm, 100% QC quality inspection before delivery
Packing	Customers' Specific Requirement
Technology	Bending, Decoiling, Welding, Punching, Cutting CNC, drilling, milling, assembling, Powder Coating, Anodizing, Mill finish, Sandblasting
Colour	Silver, Black, Champagne, Gray, Gold, Rose Gold, Matte
Shape	Square, Rectangle, etc.

Manufacturing Process Comparison

Cold Forging Advantages:

No black scale remains at the root of the pillars after CNC machining.

Hot Forging Disadvantages:

Large areas of black scale are left at the root of the pillars after CNC machining.

Technical Parameters

Manufacturing Process Flow

Industry Applications

New Energy Vehicle Sector

Motor / Electronic Control System
Battery Pack System
Charging Pile Module

Industrial High-power Equipment Sector

Frequency Converter / Servo System
High-power Power Supply
Laser Equipment

Consumer Electronics and High-end Equipment Sector

High-performance Consumer Electronics
Aerospace Equipment

New Energy Energy Storage Sector

Advanced Equipment & Precision Machining

Our mold workshop features comprehensive manufacturing capabilities:

22 sets of electric discharge machines (EDM) including 2 MAKINO mirror EDM machines
9 wire-cut EDM machines (low-speed) with 3 Seibu and 1 Sodick imported from Japan
7 spark erosion machines, 10 grinding machines, 2 milling machines, and 1 lathe

Table Size	500×350 mm
Rapid Traverse Speed	5000 mm/min
Maximum Workpiece Weight	500 kg
Maximum Electrode Weight	50 kg

High Machining Precision: Utilizing SuperSpark4 and IES (Intelligent Expert System) technologies for advanced adaptive power supply and jump control to stabilize EDM processes and improve precision. Equipped with ultra-surface and ultra-edge generator technologies for excellent surface finish and metallurgical quality.

Manufacturing Facilities

Quality Assurance

We maintain rigorous quality standards with comprehensive testing equipment:

1 Coordinate Measuring Machine
1 projector instrument
2 water high pressure testing machines
4 thermal resistance testing machines
2 liquid leakage testing machines

Customer Service Commitment

Prompt response to all inquiries
Competitive pricing with guaranteed quality
Efficient production scheduling
Optimal transportation solutions
Comprehensive technical support

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.

Have you exported goods before and to which regions?

60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.

How many employees do you have?

Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.

Can you provide samples if we agree with the design?

Yes, we provide samples for confirmation before mass production, along with technical drawings if required.

What packing methods do you use?

Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.

Do you provide technical support for product issues?

All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
