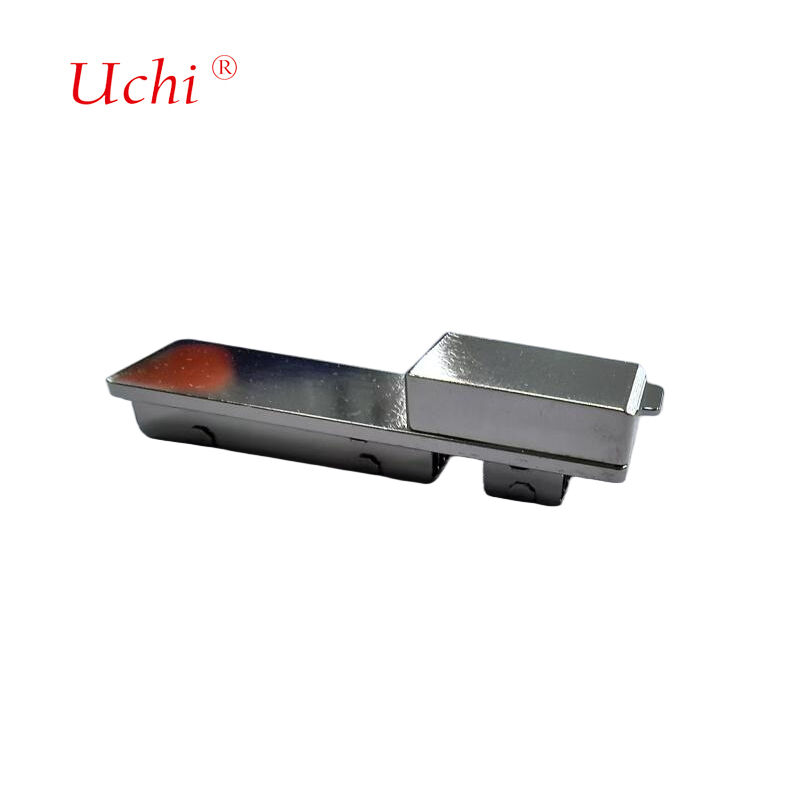

Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution

Brand Name:	Uchi
Model Number:	Air-cooled radiator 1
MOQ:	100pcs
Price:	Negotiable
Payment Terms:	T/T，paypal， Western Union,MoneyGram
Supply Ability:	50000000pcs per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan，Guangdong,China

Certification:

SMC

Material:

Aluminum Alloy / Copper Alloy

Thermal Conductivity:

≥ 180 W/m·K

Heat Dissipation Power:

Supports Single-module Heat Dissipation Power ≤ 15W

Warranty:

1 Year

Certification:

AS9100,IATF16949,ISO13485

Mounting Method:

Snap-fit / Screw Fixation, Closely Attached To The Optical Module Housing

Highlight:

Compact SFP Cold Plate

Optical Module Heat Sink

Air Cooled Electronic Cold Plates

Product Description

Compact Optical Module Cold Plates For Electronics Air Cooled Heat Sink Solution

Product Overview

Compact Optical Module Air-cooled Heat Sink designed for Small Form-factor Pluggable (SFP) optical modules. This compact air-cooled heat sink provides efficient thermal management for high-performance optical communication systems.

Technical Specifications

Material	Aluminum alloy / Copper alloy (thermal conductivity ≥ 180W/m·K)
Compatible Optical Module Types	QSFP/QSFP28 (for 100G/200G optical modules)
Heat Dissipation Power	Supports single-module power consumption ≤ 15W
Dimensions	Length approx. 50-60mm, thickness ≤ 8mm (compatible with standard Cage housing)
Mounting Method	Snap-fit / screw fixation, closely attached to the optical module housing

Application Fields

100G/200G pluggable optical modules for data center switches
Small optical modules for fronthaul/mid-haul equipment of 5G base stations
Low-power optical communication components for edge computing nodes

Manufacturing Capabilities

Advanced Brazing Technology

Brass / Copper CNC

Aluminium / Zinc CNC

Stainless Steel / Steel CNC

Plastic CNC

Key Applications

Production Equipment

Our air-cooled equipment includes: 10 units of low-temperature solder reflow ovens, 5 units of baking ovens, 20 units of automatic solder dispensing equipment, 3 units of automatic solder brushing equipment, 50 units of torque-controlled electric screwdrivers, 1 unit of CCD inspection equipment, 2 units of fully automatic optical module testing equipment, 11 units of multi-station thermal performance testing equipment, 4 units of flatness optical testing equipment, and other related equipment.

Quality Assurance

We maintain rigorous quality standards with 1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.

Customer Service

Prompt response to all inquiries
Competitive pricing with guaranteed quality
Efficient production scheduling
Optimal transportation solutions
Comprehensive technical support

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.

Have you exported goods before and to which regions?

60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.

How many employees do you have?

Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.

Can you provide samples if we agree with the design?

Yes, we provide samples for confirmation before mass production, along with technical drawings if required.

What packing methods do you use?

Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.

Do you provide technical support for product issues?

All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
