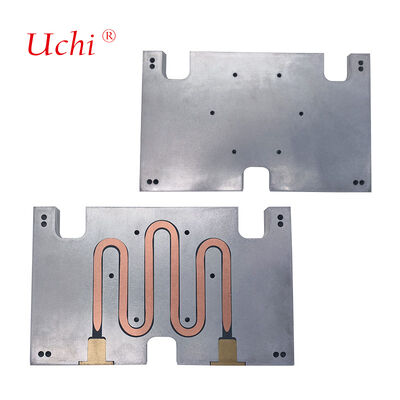

IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution

Brand Name:	Uchi
Model Number:	Liquid cooling plate 12
MOQ:	100pcs
Price:	Negotiable
Payment Terms:	T/T，paypal， Western Union,MoneyGram
Supply Ability:	50000000pcs per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan，Guangdong,China

Certification:

SMC

Material:

Aluminum Alloy

Working Pressure:

1.2 To 5 Bars

Surface Finish:

Mill Finish Or Anodization

Size:

220*140*35mm Or Customized Size

Single Package Size:

23X15X4 Cm

Single Gross Weight:

2.400 Kg

Warranty:

1 Year

Surface Roughness:

1.2 Um

Surface Flatness:

Below 0.005 Cm/cm

Highlight:

IGBT Custom Liquid Cold Plate

Module Aluminum Water Cold Plate

Thermal Solution Cooling Plate

Product Description

IGBT Module Custom Liquid Cold Plate Aluminum Water Cooling Thermal Solution

Custom IGBT Liquid Cooling Plate Aluminum Cooling Plate. Our aluminum cold plate is processed from high-quality aluminum alloy, offering optimal heat dissipation for IGBT modules. With a thermal conductivity of approximately 202W/(m*K), these plates provide excellent performance while reducing system weight and cost compared to copper alternatives.

Material Advantages

Aluminum alloy offers significant advantages for liquid cooling applications:

Cost-effective at 1/3 to 1/4 the price of copper
Lightweight with density of 2.7g/cm³ (vs. 8.9g/cm³ for copper)
Can be fabricated into complex flow channel structures
Resists coolant corrosion while maintaining stable thermal conductivity

Product Specifications

Materials	Copper (1020/1100), Aluminum (1060/1070/6063/6061)
Surface Treatment	Plating, Coating, Painting, Anodizing, Sandblasting, Tapping, Deburring, Chromating, Laser Marking, Degreasing, Passivation, Clearing
Processing	CNC Machining, Extrusion, Cutting, Cold forging, Die casting, Stamping, Skiving, Folding, Inserting, FSW (Friction Stir Welding), Welding, Epoxy, Nickel Plating, Bending, Soldering, Cross Cutting, Milling, Drilling
Dimension	Customized size or Customer's Drawing Required
Application	LED Lighting, Solar Inverter, Power Supply Equipment, Medical Ventilator, IGBT, Electric Automotive, Desktop Liquid Cooling, Communication Device, CPU Cooler, Industrial Equipment
Drawing Accepted	AutoCAD (dxf,dwg), PDF, 3D (STEP/IGS)

Advanced Brazing Technology

Our vacuum brazing process joins aluminum plates using a filler metal with a lower melting point than the base material, creating extremely strong joints without residual corrosive flux. This high-end technology offers uniform heating, precise temperature control, and eliminates post-cleaning requirements while minimizing part distortion.

Key Applications

Lasers and medical equipment
EV power battery pack cooling
Power electronics and motor drive devices
Microwave 5G transmission systems
Renewable energy systems
IGBT and Power Semi-Conductor Systems
Data centers and industrial power applications
Defense systems and avionics
Fuel cells and traction systems

Production Capabilities

Our manufacturing facility includes 25 CNC machines, 10 stamping machines, 2 friction welding machines, 2 large thermal blowers, 4 wire cutting machines, 2 spark machines, 4 milling machines and 3 grinding machines.

Quality Assurance

We maintain rigorous quality standards with 1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.

Customer Service

Prompt response to all inquiries
Competitive pricing with guaranteed quality
Efficient production scheduling
Optimal transportation solutions
Comprehensive technical support

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.

Have you exported goods before and to which regions?

60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.

How many employees do you have?

Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.

Can you provide samples if we agree with the design?

Yes, we provide samples for confirmation before mass production, along with technical drawings if required.

What packing methods do you use?

Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.

Do you provide technical support for product issues?

All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
